High-Performance Bridge Type Automatic Grinding Machine for Stone Processing

1
MOQ
To Be Negotiable
Prijs
High-Performance Bridge Type Automatic Grinding Machine for Stone Processing
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Structuur: Brugstructuur
Controle: CNC
Materiaal: marmeren, graniet en natuursteenoppervlakken
Hoofdmotor: 15 kW
Totaal vermogen: 19 kW
Overzichtsdimensie: 6000*4250*1550 mm
Tillen: 250 mm
Slijphoofdtype: Zesklauw slijpkop
Luchtcompressorondersteuning: 3 kW
Uitgebreid reisbereik: 2200/4500 mm
Waterverbruik: 3m³/h
Aantal slijpkop: 1 STUKS
Markeren:

bridge type stone grinding machine

,

automatic stone slab polisher

,

high-performance stone processing machine
Basis informatie
Plaats van herkomst: Jinjiang, Fujian, China
Merknaam: Xianda Machinery
Certificering: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Modelnummer: ZDPM-3522/3545
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Plastic pakket, geschikt voor zeevoer
Levertijd: 1 maand
Betalingscondities: L/C, T/T, D/P, Western Union, PayPal, geld gram, anderen
Levering vermogen: 1000 sets/jaar
Productomschrijving

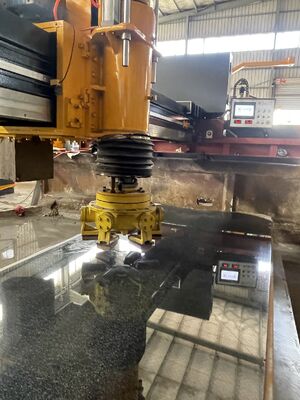

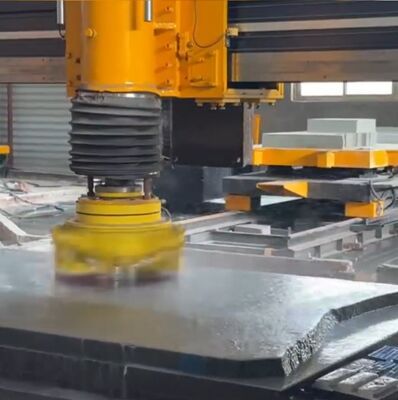

High-Performance Bridge Type Automatic Grinding Machine for Stone Processing
Our high-performance bridge type automatic grinding machines redefine precision and efficiency in stone processing. Available in two powerful models - ZDPM-3522 and ZDPM-3545 - each engineered to deliver top-notch performance.
Technical Specifications
Parameter Unit ZDPM-3522 ZDPM-3545
Front and back travel mm 2200 4500
Left and right travel mm 3500 3500
Lifting stroke mm 250 250
Main motor power kw 15 15
Total Power kw 19 19
Outline dimension mm 6000x4250x1550 6000x6450x1550
Water consumption m³/h 3 3
Grinding head type / Six-claw grinding head Six-claw grinding head
Number of grinding heads pcs 1 1
Air compressor power kw 3 (Optional) 3 (Optional)
High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 0 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 1 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 2 High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 3
Key Features and Benefits
  • Bridge-Type Architecture: One-piece Meehanite® cast-iron bridge ensures micron-level accuracy (±0.05 mm planarity) across the entire table for consistent scratch depth and perfect flatness.

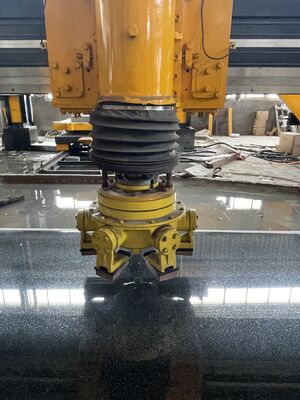

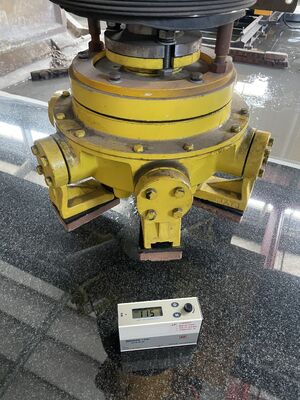

  • 15 kW Servo-Controlled Power: Vector-controlled main spindle delivers 300-3,000 rpm with real-time torque adjustment. Six-claw planetary grinding head removes stock 30% faster while using 20% fewer abrasives.
  • Advanced Automation: 15-inch HMI with recipe library, automatic thickness probing, and built-in OPC-UA & Modbus TCP for smart-factory integration.
  • Durable Construction: Linear roller guides rated for 50,000 km of maintenance-free travel with auto-lubrication every 8 hours. Centralized rinse station keeps downtime under 5 minutes per shift.
  • Proven ROI: Installations worldwide report 25% lower labor costs, 30% reduction in abrasive spend, and 20% increase in daily throughput.
Optional Upgrades (Field-Retrofittable)
  • 5-axis profiling head for ogee & bullnose edges
  • Laser slab mapper for automatic warp compensation
  • Closed-loop water recycling system (<50L fresh water per shift)
  • Remote production app for OEE monitoring from any smartphone
Warranty and Support
10-year warranty on frame and bridge with global network of certified engineers for same-day remote diagnostics.
Availability
ZDPM-3522 and ZDPM-3545 models are in stock for immediate dispatch. Contact our application engineers for a live demo or virtual Factory Acceptance Test.
