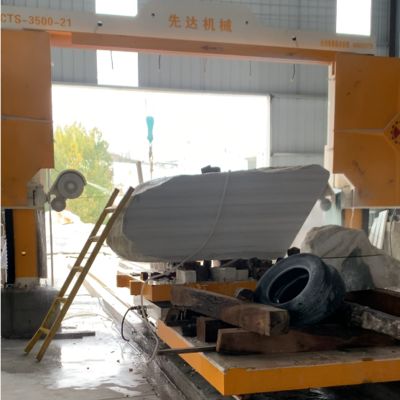

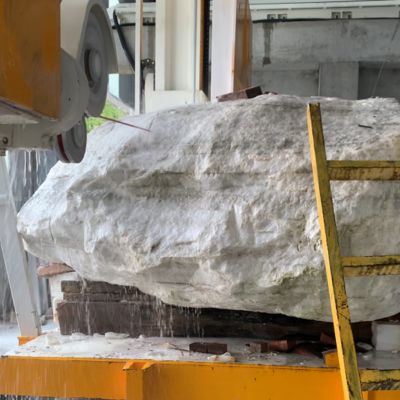

CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine with 360° Rotary Table 220V/380V and 4m3/H Water Consumption

The CTS-3500-18/21/22FW is a four-axis, CNC-controlled diamond wire-saw dressing centre engineered for high-precision shaping of large stone blocks.

With 16-surface slideways, 28 rolling-wheel synchronous lift and a 360° rotary table, it dresses four faces without repositioning and sculpts arcs, columns, numerals, letters or Chinese characters up to 3.5 m long × 3.5 m wide × 2.2 m high - all in a single program.

• X-axis - table longitudinal (block length)
• Y-axis - cross beam transverse (block width)
• Z-axis - vertical head lift (block height)
• C-axis - table 360° rotation (continuous cylinder or four-face dressing)

Result: true 3-D sculpture, 360° column, four-side dressing or curved façade panel without repositioning.

• 360° columns
• Arc slabs - curved wall cladding, column façades
• Numerals & letters - 3-D signage, address stones
• Chinese characters - artistic monuments
• Four-side dressing - monument block squaring
• Curved kerbs - radius road edges

Materials: granite, marble, quartzite, basalt, engineered stone.

1. Load block onto rotary table (forklift or vacuum lifter)
2. Import CAD file (.dxf, .stp) or use on-screen wizard
3. Select wire speed & passes - click START
4. Machine auto-cuts - table rotates or head moves as programmed
5. Unload finished piece - ready for polishing or direct install

• Export crate: wire rope lashing, suitable for sea/air/land/rail transportation.
• Delivery: 30 days (stock) / 40 days (custom colour)
• Warranty: 12 months for parts
• Installation: video-guide + remote support; on-site service optional
• Spare parts: 48 h dispatch from regional warehouse
