Automatic Roman-Pillar Slot Cutting Machine with 50Hz Frequency 1200*3500 Trolley Size and 20 Feet Container Transport Package

1
MOQ
To Be Negotiable
Prijs
Automatic Roman-Pillar Slot Cutting Machine with 50Hz Frequency 1200*3500 Trolley Size and 20 Feet Container Transport Package
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Veiligheidsbescherming: Hoog
Blade Aantal: Een
Frequentie: 50Hz
Max Cutting Diameter: 1400 mm
Trolley maat: 1200*3500
Stroom: 7,5 kW
Transportpakket: Lading in een 20 Voet Container
Garantie: 1 jaar voor onderdelen
Markeren:

Roman Pillar Slot Cutting Machine

,

50Hz Automatic Pillar Cutting Machine

,

Automatic Roman-Pillar Cutting Machine
Basis informatie
Plaats van herkomst: Jinjiang, Fujian, China
Merknaam: Xianda Machinery
Certificering: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Modelnummer: DLC-1400
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Staalkabel vastsjorren, geschikt voor zee-/lucht-/land-/spoorvervoer.
Levertijd: 15 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 1000 sets/jaar
Productomschrijving

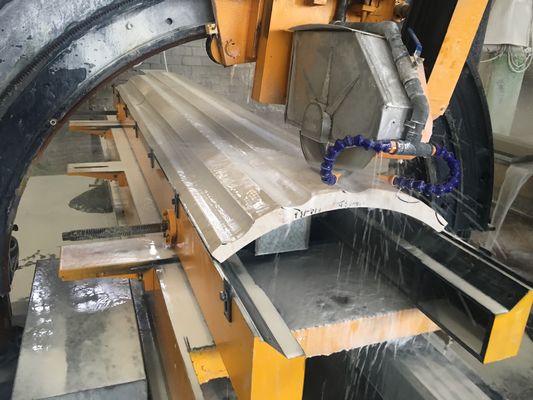

DLC-1400 Automatic Roman-Pillar Slot Cutting Machine

Product Snapshot

Turn fluted-column production into a one-operator job. The DLC-1400 is a micro-processor-controlled slotter engineered for Roman, Corinthian and Tuscan pillars from Φ450 mm up to Φ1 400 mm. Three-piece clamping, automatic index and a 7.5 kW direct-drive spindle deliver clean, chatter-free flutes at rates 3× faster than manual methods.

Technical Specifications

Parameter Unit DLC-1400
Processing diameter (Three pieces) mm Ф450~Ф1400
Trolley size mm 1200 x 3500
Main motor kw 7.5
Gross power kw 12.5
Outline dimension mm 6500 x 2800 × 2800
Gross weight kg ≈4000
Water consumption m³/h ≈2
Automatic Roman-Pillar Slot Cutting Machine with 50Hz Frequency 1200*3500 Trolley Size and 20 Feet Container Transport Package 0


Automatic Roman-Pillar Slot Cutting Machine with 50Hz Frequency 1200*3500 Trolley Size and 20 Feet Container Transport Package 1

Automatic Roman-Pillar Slot Cutting Machine with 50Hz Frequency 1200*3500 Trolley Size and 20 Feet Container Transport Package 2


Why DLC-1400?

  1. Micro-Computer Accuracy
  2. Three-Piece Assembly Ready
    • Accepts pre-glued three-segment columns up to 1.4 m Ø
    • Self-centering roller bed prevents segment shift during slotting
    • Grooves align perfectly across joints—no visible mismatch
  3. Heavy-Duty Build, Low Vibration
    • 4 t total weight + 6500 mm steel frame absorbs cutting forces
    • 7.5 kW main motor maintains constant RPM under full load
    • 2 m³/h water curtain cools tool and eliminates dust
  4. Operator-Friendly Workflow
    1. Place column on powered rollers
    2. Enter groove count / depth on touch panel
    3. Press START—head indexes automatically
    4. Unload finished column—ready for polishing

Ideal Applications

  • Roman / Greek fluted columns
  • Hotel lobby pillars
  • Exterior façade balustrades
  • Garden column sets
  • Monumental architectural features

Quick Specs

  • Processing diameter: 450 – 1400 mm
  • Table length: 3 500 mm (accepts columns ≤ 3.2 m)
  • Main motor: 7.5 kW
  • Total power: 12.5 kW
  • Water consumption: ~2 m³/h (recycled)
  • Machine weight: ≈ 4 000 kg
  • Foot-print: 6.5 × 2.8 × 2.8 m

Package & Warranty

  • Export crate: steel-frame + plywood
  • Delivery: 20 days (stock) / 30 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional

Get Quote in 12 h
