Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble

1
MOQ
To Be Negotiable
Prijs
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Garantie: 1 jaar, een jaar, 12 maanden, 18 maanden, 2 jaar
After-sales service verstrekt: Ingenieurs die beschikbaar zijn voor het onderhoud van machines in het buitenland,Online-ondersteuni
Gewicht: 1-5 ton, 1000 kg, 62/65 kg, 600 kg, 320 kg
Voorwaarde: Nieuw
Dimensie (L*W*H): 6000*1400*1550mm,3500*4000*2500mm,3250x3450x900mm,2200*2200*1700,775*270*460mm
Spanning: 380V,380V/50HZ,230V/380V,220V,facultatief
Gebruik: Houtbewerking, houtafkortzaag, houtzagen, snijzaag, metaalsnijden
Stijl: Horizontaal, ander, verticaal
Gebruik: Houtbewerking, graniet en marmer
Productnaam: Automatische houtsnijzaagmachine,Automatische hogesnelheidssnijzaagmachine,kleine waterstraalsnijmac
Type: Bandzaag, SF606, volledig automatisch, afgesneden zaag, tafelpaneelzaag
Sollicitatie: Panelen Houtsnijdmachine,Houtbewerkingsfabriek,Granitmarmersteen snijdmachine,Houtbewerking,Houtproc
Nominale kracht: 15 kW
Naam: Houtsnijbandzaagmachine,Automatische schuiftafelzaag Houtsnijmachine,Precisiezaagmachine,bankzaag,SF
Kleur: Blauw, Custom Designed, Aanpasbaar, Blauw of aangepast, Geel
De diameter van het zaagblad: 300 mm (250 mm-350 mm), 450 mm, 600 mm
Trefwoord: High Speed Cutting Saw,Horizontal Metal Bandsaw Cutting Machine,Automatic Cutting Saw Machine,Metal
Markeren:

Granite Stone Bridge Saw Cutting Machine

,

Automatic Stone Bridge Saw Cutting Machine

,

Infrared Bridge Saw Cutting Machine
Basis informatie
Plaats van herkomst: Jinjiang, Fujian, China
Merknaam: Xianda Machinery
Certificering: CCC, SONCAP, GOST, ISO, CE
Modelnummer: ZDQJ-450
Betalen & Verzenden Algemene voorwaarden
Levertijd: 30 dagen
Betalingscondities: L/C, D/A, T/T, D/P, Western Union
Levering vermogen: 1000 sets/jaar
Productomschrijving
ZDQJ-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite/Marble
Basic Information
Model NO.: ZDQJ-450/600/800
Application: Construction, Stone Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: PLC
Certification: CCC, SONCAP, GOST, ISO, CE
Blade Diameter: Φ300-Φ450
Max Processing Size: 3200*2000*120mm
Dimension of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 15kw
Gross Motor: 21kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*2900mm
Gross Weight: 5250kg
Transport Package: Load in a 20 Feet Container
Specification: 6000*4800*2900mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 0 Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 1
Product Description

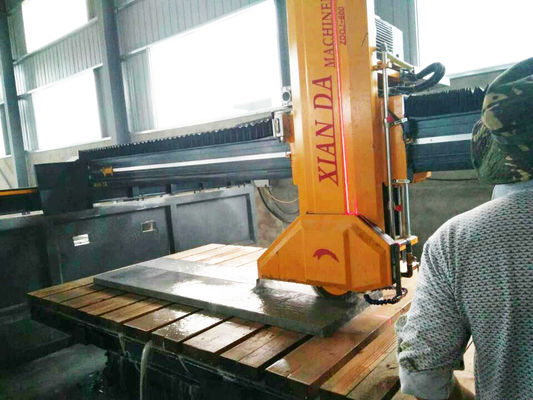

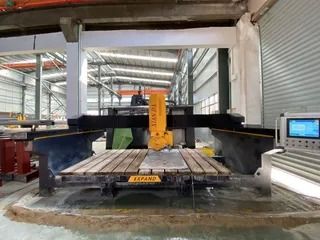

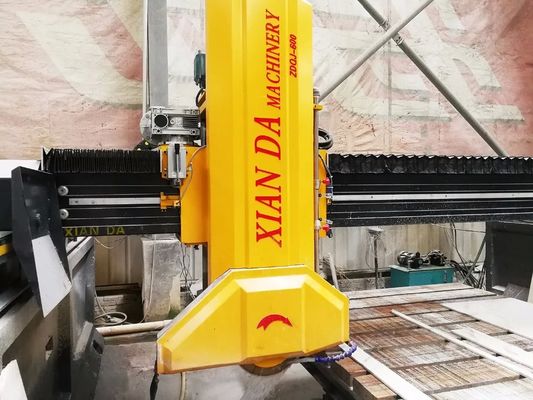

The ZDQJ-450 infrared automatic stone bridge cutting machine comes in three types, featuring PLC system and Human-machine interface. It incorporates ultra-high precision rotary encoder positioning and infrared device, with Chinese & English dual operation language. The machine uses inverter to control left-right feeding, adjusting speed according to stone material, and features hydraulic lifting system equipped through 4 guide posts with unique side beam protection device. Main spare parts utilize imported high-quality materials.
This machine is characterized by high cutting efficiency, precision cutting, excellent stability, and easy operation, making it particularly suitable for high-value granite and large-size marble processing.
Technical Parameters
Parameter Unit ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter mm 300-450 350-600 350-700
Max processing size mm 3200*2000*120 3200*2000*180 3200*2000*230
Dimension of worktable mm 3200*2000 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85° 0-85°
Worktable rotation degree ° 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main motor kw 15 18.5 18.5
Gross motor kw 21 24 24
Water consumption m³/h 4 4 4
Outline dimension mm 6000*4800*2900 6000*4800*3100 6000*4800*3200
Gross weight kg 5250 5500 5750
Xianda Machinery
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 2
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of a series of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With the company's rapid development, we have passed ISO9001 verification, CE certification, and won many honorary titles including the International Gold Plant Quality Award. We maintain "Advanced Technology and High Quality" as our aim and have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Zdqj-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite / Marble 3
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service
For any inquiries or support, please contact our sales department or customer service department at any time.
