Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America

1
MOQ
$48,000 - 55,000
Prijs
Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Markeren:

5 axis CNC granite cutter

,

marble tile bridge saw machine

,

stone cutting sink engraving machine
Basis informatie
Plaats van herkomst: Jinjiang, Fujian, China
Merknaam: Xianda
Certificering: CCC, ISO, CE
Modelnummer: Promotie 450
Betalen & Verzenden Algemene voorwaarden
Levertijd: 45 dagen
Betalingscondities: L/c, d/a, d/p, t/t
Levering vermogen: 1000 stuks per jaar
Productomschrijving
5 Axis CNC Granite Marble Tile Cutter
High-speed stone cutting and sink cutting milling engraving bridge saw machine with Italy software control.
Product Overview
The 5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, featuring bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, and oil-immersed track structure. This machine offers multi-function capabilities, high precision, and strong stability.
Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 0
Key Features
  • Processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling
  • Multiple processing functions with wide application
  • Compact space requirements and simple operation
  • Ideal equipment for professional stone processing
Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 1
Technical Specifications
Parameter Unit Promte-450
Blade diameter mm Φ350-Φ450
Max processing size mm 3200*2000*120
Lifting stroke mm 300
Dimension of worktable mm 3200*2000
Worktable tilting degree ° 0-85°
Head rotating degree ° 0-360°
Head tilting degree ° 0-90°
Air speed m/min 15
Repeated accuracy of positioning mm <0.1mm/1000
Main motor kw 18.5 Permanent Magnetic Synchronous Motor
Gross motor kw 26
Water consumption m³/h 3
Outline dimension mm 5600*3600*3500
Gross weight kg 6000

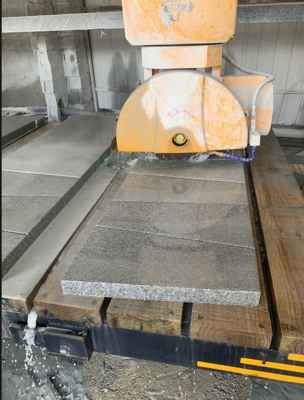

Product Images
Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 2 Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 3 Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 4 Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 5
Optional Vacuum Device
Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 6 Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 7 Italy Software 5 Axis CNC Granite Marble Tile Cutter Stone Cutting and Sink Cutting Millling Engraving Bridge Saw Machine in America 8
Manufacturer Information
Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985. Located in Jinjiang Wuli Industrial area, the company covers 20,000m³ area and has more than 34 years of experience in developing and producing stone processing machinery.
Our Advantages
  • Training for machine installation and operation
  • Engineers available for overseas service
  • 24-hour online after-sales service
  • Top 10 stone cutting machine manufacturer with ISO & CE certification
  • 70% China market share for special shape stone cutting machines
Quality Assurance
  • Experienced quality control team
  • Strict inspection process
  • Testing video provided before shipping
  • One year warranty on all machines
Frequently Asked Questions
How to place order to your company?
1. Inquiry-Professional quotation
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt
5. Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
How is After-sales Service Provided?
Engineer can dispatch for assembly machinery
Are you Manufacture Factory?
Yes, we are the stone machinery factory for over 30 years
What about the warranty time of the machine?
We provide one year for parts warranty service
